Conductive Non-woven tape

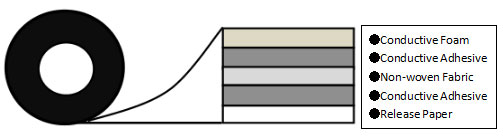

Construction



Key Features
Low contact resistance and high shielding effectiveness.
Good resilient and low compression set.
Good reliable through Accelerated Life Test(ALT).
Good reliable adhesion power to make reliable sticking.

Application Ideas

ESD grounding for electronic equipments.
Fill the EMI gap for electronic equipments.

Specification


Item No. Thickness(mm) Color Surface Resistance (Ω/sq.in) Vertical resistivity (Ω/sq.in) 180° Peel Adhesion (gf/25mm) Dimension
E2303 0.03 银灰色 ≤0.5 ≤0.05 600 Any width x50M
E2305 0.05 银灰色 ≤0.5 ≤0.05 800
E2308 0.08 银灰色 ≤0.5 ≤0.05 800
E2310 0.1 银灰色 ≤0.5 ≤0.05 1000
E2315 0.15 银灰色 ≤0.5 ≤0.05 1000
E2320 0.2 银灰色 ≤0.5 ≤0.05 1200
E2325 0.25 银灰色 ≤0.5 ≤0.5 1200
E2330 0.3 银灰色 ≤0.5 ≤0.5 1200
E2305HT 0.05 银灰色 ≤0.5 ≤0.5 1000
